Teltonika FMB001

Full description and configuration of Teltonika FMB001 tracker with server

Advanced Plug and Play real-time tracking terminal with GNSS, GSM and Bluetooth connectivity

Configurator with a full launching description of the Teltonika FMB001

FMB001 is advanced OBDII Plug and Play tracker perfectly suitable for light vehicle tracking in applications like courier delivery service, car rental, leasing, insurance telematics and many other where simple integration is a must. Teltonika FMB001 device supports temperature/humidity sensors, hands-free, firmware and configuration update via Bluetooth.

FEATURES
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, Debug
GPRS commands Configuration, Debug
Time Synchronization GPS, NITZ, NTP
Fuel monitoring
Ignition detection, Accelerometer, External Power Voltage, Engine RPM, Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Sensors Accelerometer
Sleep modes

MODULE
Name Teltonika TM2500
Technology GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33 channel
Tracking sensitivity -165 dBM
Accuracy < 2.5m CEP
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
CELLULAR
Technology GSM
2G bands Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer GPRS Multi-Slot Class 12(up to 240 kbps)
Data support SMS (text/data)

BLUETOOTH
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support

OBD INTERFACE
Data reading Up to 32 vehicle onboard parameters, supported OBD protocols:
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)

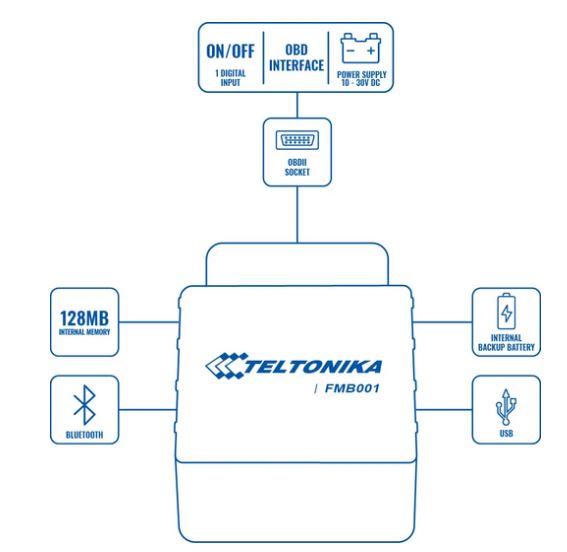

INTERFACE
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM Micro-SIM
Memory 128MB internal flash memoryDigital Inputs 1
Connection OBDII Socket
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain

POWER
Input voltage range 10 – 30 V DC with overvoltage protection
Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Power consumption At 12V < 5 mA (Ultra Deep Sleep)
At 12V < 7 mA (Deep Sleep)
At 12V < 7 mA (Online Sleep)
At 12V < 8 mA (GPS Sleep)
At 12V < 28 mA (nominal)

PHYSICAL SPECIFICATION
Dimensions 50,7 x 49,6 x 25 mm (L x W x H)
Weight 63 g

OPERATING ENVIRONMENT
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months

CERTIFICATION & APPROVALS
Regulatory CE/RED, E-Mark, EAC, RoHS, REACH
