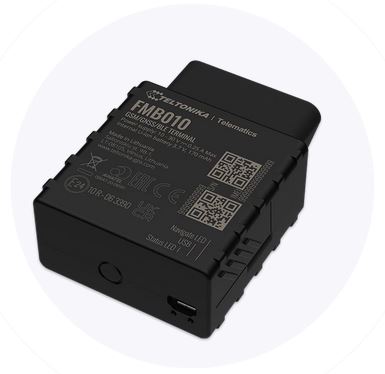

Teltonika FMB010

Full description and configuration of Teltonika FMB010 tracker with server

Plug and Track real-time tracking terminal with GNSS, GSM and Bluetooth connectivity.

Configurator with a full launching description of the Teltonika FMB010

Teltonika FMB010 is easy OBDII Plug and Play tracker. FMB010 is perfectly suitable for light vehicle tracking in applications like courier delivery service, car rental, leasing, insurance telematics and many other.This device supports temperature/humidity sensors, hands-free, firmware and configuration update via Bluetooth.

FEATURES
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, Debug
GPRS commands Configuration, Debug
Time Synchronization GPS, NITZ, NTP
Ignition detection Digital Input 1, Accelerometer, External Power VoltageSensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes

MODULE
Name Teltonika TM2500
Technology GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33 channel
Tracking sensitivity -165 dBM
Accuracy < 2.5m CEP
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s

CELLULAR
Technology GSM
2G bands Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps)
Data support SMS (text/data)

BLUETOOTH
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support

INTERFACE
Digital Inputs 1
Connection OBDII Socket
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM Micro-SIM
Memory 128MB internal flash memory

POWER
Input voltage range 10 – 30 V DC with overvoltage protection
Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Power consumption At 12V < 5 mA (Ultra Deep Sleep)
At 12V < 7 mA (Deep Sleep)
At 12V < 7 mA (Online Sleep)
At 12V < 8 mA (GPS Sleep)
At 12V < 28 mA (nominal)

PHYSICAL SPECIFICATION
Dimensions 50,7 x 49,6 x 25 mm (L x W x H)
Weight 63 g

OPERATING ENVIRONMENT
Operating temperature (without battery) -25 °C to +55 °C
Storage temperature (without battery) -40 °C to +70 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months

CERTIFICATION & APPROVALS
Regulatory CE/RED, E-Mark, EAC, RoHS, REACH
